How Does a Spray Bottle Work? Parts, Pump Mechanism & Diagram

Spray bottles look simple, but inside the trigger head sits a small pump working in two alternating strokes. Once you see how those two strokes cooperate, every part inside-and every formula question that follows-makes sense.

One-way valves keep the liquid moving in the correct direction. The nozzle then controls how that liquid leaves the bottle, whether as a fine mist, a broader spray, or a concentrated stream.

How does a spray bottle work? The short answer

A spray bottle uses a small mechanical pump with a piston, pump chamber, dip tube, check valves and nozzle.

Pulling the trigger compresses the pump chamber and sends liquid toward the nozzle. Releasing the trigger allows the chamber to expand again, creating the pressure difference needed to bring more liquid up from the bottle. The two actions repeat every time the sprayer is used.

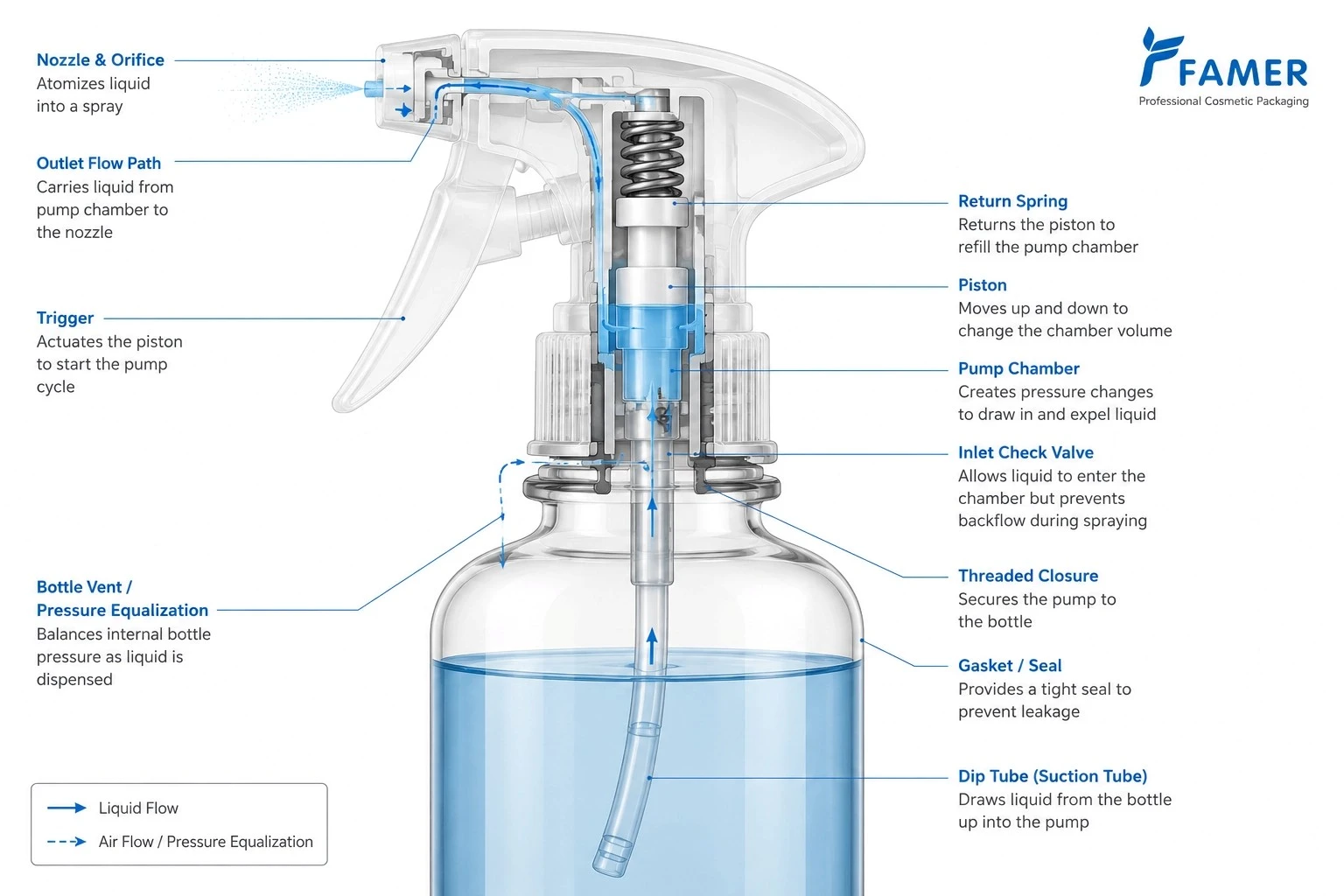

What parts are inside a spray bottle?

The exact internal layout varies between sprayer designs, but most manual spray systems rely on the same basic functions.

A few of these parts deserve a closer look because they explain most of the pumping cycle.

Piston and pump chamber

The piston changes the volume inside the pump chamber.

As the piston moves inward, the available space becomes smaller and pressure on the liquid rises. When the piston returns, the chamber becomes larger and pressure inside it falls relative to the liquid reservoir.

That alternating change in chamber volume is what allows the dispenser to first discharge liquid and then refill.

Dip tube and inlet valve

The dip tube connects the liquid reservoir to the pump.

During refill, liquid travels upward through the tube and passes through the inlet side of the pump. The inlet check valve allows flow toward the pump chamber while resisting reverse flow during the discharge stroke.

Dip tube length matters as well. A tube that is too short may stop picking up product before the bottle is empty. A tube that is unnecessarily long may bend against the bottle base and interfere with reliable pickup, depending on the package geometry.

Nozzle, gasket and closure

The nozzle controls the final exit path of the liquid. Its internal geometry and outlet design influence the spray pattern.

Behind it, the closure and gasket connect the dispenser to the bottle and help maintain the intended seal.

A sprayer can fit onto a bottle physically and still leak if the neck finish, gasket, closure or assembly conditions are not properly matched.

This becomes especially important when a package is being selected for commercial filling rather than casual household use.

One pumping cycle has two stages

Once the system is primed, the mechanism becomes easier to understand if you separate one cycle into two stages.

Stage 1: pull the trigger and discharge the liquid

When the trigger is pulled:

• The trigger pushes the piston into the pump chamber.
• The chamber volume decreases.
• Pressure on the liquid inside rises.
• The inlet side resists flow back toward the bottle.
• Liquid moves through the outlet path.
• The liquid reaches the nozzle and leaves the sprayer.

This is the discharge stroke.

Stage 2: release the trigger and refill the pump

When the trigger is released:

• The spring returns the piston.
• The pump chamber expands.
• Pressure inside the chamber falls relative to the reservoir.
• The inlet valve allows liquid to enter.
• Liquid moves up through the dip tube.
• The chamber refills for the next spray.

This is the intake or refill stroke.

The liquid does not move upward because the pump is literally "pulling" it like a rope. The pressure difference between the pump chamber and the liquid reservoir drives the flow.

Why one-way valves are necessary

If liquid could move freely in both directions, the pump would not work efficiently.

During refill, the pump needs liquid to move from the bottle into the chamber. During discharge, that same liquid must be prevented from simply returning down the dip tube.

The check valves provide that directional control.

In simplified form:

• Refill: bottle → pump chamber
• Discharge: pump chamber → nozzle

This is the part of the mechanism that turns repeated trigger movement into one-way liquid transport.

How does the nozzle turn liquid into mist?

Getting liquid to the nozzle is only half of the process. The pump still has to produce the spray pattern the user expects.

Pressure helps move the liquid, but pressure alone does not determine whether the result is a fine mist, coarse spray or narrow stream.

Research on liquid atomization shows that droplet formation depends on several variables, including liquid properties, atomizer design, operating pressure and flow conditions.[1]

What happens inside the nozzle?

The exact design differs between sprayers.

In many fine-mist systems, small internal passages guide the liquid toward a narrow outlet. Some nozzle designs also create rotational or swirling flow before the liquid exits.

As the liquid leaves the outlet, the liquid sheet or jet breaks into droplets. This process is called atomization.

The final spray depends on the complete system. A smaller visible opening does not automatically mean a better or finer mist.

Why does one sprayer make mist and another make a stream?

Several factors can change the result:

• nozzle design
• spray setting
• pump output
• formula viscosity
• blockage at the outlet
• the physical behavior of the liquid itself

ASTM's practice for evaluating mechanical pump spray patterns also notes that spray pattern can vary with actuator design and the physical nature of the liquid.[2]

This is why a sprayer that produces a clean mist with water should not automatically be assumed to produce the same result with a finished cosmetic, hair-care or household formula.

Why does a new spray bottle need several pumps before it sprays?

A new sprayer normally contains air inside the dip tube, pump chamber and internal liquid path.

The first actuations move that air through the pump while gradually bringing product up from the bottle. Once enough liquid reaches the pump chamber and outlet path, the system becomes primed and begins spraying normally.

ASTM D3890 describes a method for determining the number of actuations required to prime a mechanical spray or flow pump with a consumer-type product.[3]

The number of priming strokes is not universal. It can change with the pump design, dip tube length, formula and package configuration.

If a bottle has already been working and suddenly requires repeated pumping, the problem is more likely related to the liquid path, sealing, valve operation or blockage.

What affects spray bottle performance?

Most mechanical sprayers follow a similar basic pumping principle. Their actual performance can still vary significantly.

For a consumer, that difference shows up as spray feel, coverage or consistency. For a packaging buyer, it becomes a product specification issue.

Pump output per stroke

Output per stroke is the amount of product dispensed during one complete actuation.

It influences dosage, coverage and product consumption. A facial mist, for example, usually requires a different dispensing experience from a household cleaning trigger.

ASTM D4336 covers measurement of the mean quantity dispensed by a mechanical spray or flow pump per actuation.[4]

For product development, the useful question is not simply whether a pump sprays. It is whether it delivers the required amount consistently with the intended formula.

Formula viscosity

The same sprayer may behave differently with two formulas.

A more viscous product can move more slowly through the dip tube, pump chamber and nozzle. Depending on the formulation and dispenser, this can contribute to:

• slower refill
• inconsistent output
• larger droplets
• dribbling
• poor atomization

This does not mean thicker formulas cannot be sprayed. It means the sprayer has to be matched to the product rather than selected from appearance alone.

Nozzle design and spray pattern

A good spray pattern is application-specific.

A facial mist may need soft and even coverage. A household cleaner may need more output or a more targeted spray. Hair-care products may require broader coverage across a larger area.

The intended user experience should therefore be defined before choosing the nozzle.

Material and seal compatibility

A pump that works during a short water test is not necessarily suitable for the finished formula.

The product may contact the bottle, dip tube, valve elements, seals, gaskets and other internal pump components. Depending on the design, metal parts may also be exposed.

Alcohol-containing formulas, oils, solvents and active ingredients can interact differently with packaging materials. Compatibility therefore needs to be evaluated with the finished formulation rather than assumed from one ingredient or a generic material chart.

ASTM D4333/D4333M addresses compatibility testing between mechanical pump dispenser components and consumer-type products.[5]

Common spray bottle problems and what they usually point to

Most spray problems can be traced back to a small number of functions: liquid pickup, pressure generation, sealing, valve operation or atomization.

These are starting points rather than final diagnoses. Several different failures can produce similar symptoms.

For repair and troubleshooting steps, a dedicated guide is more useful than repeating the full process here.

Trigger sprayer vs fine mist sprayer vs continuous mist sprayer

All three systems dispense liquid as a spray, but the user experience is different.

The categories should not be treated as interchangeable simply because they can be fitted to similar bottles.

Aerosol containers use a different pressurized dispensing principle and are outside the scope of this mechanical pump explanation.

For brands, start with the formula, not the bottle

Up to this point, the mechanism explains how a spray bottle works.

For a brand developing a package, the next question is whether that mechanism will work correctly with a specific formula and user experience.

A practical selection process can be kept simple.

1. Define the formula

Provide the packaging supplier with information such as:

• whether the formula is water-based, alcohol-containing or oil-containing
• approximate viscosity
• whether particles are suspended in the product
• ingredients that may affect plastics, elastomers or metal components
• expected filling and storage conditions

The complete formula matters more than a single headline ingredient.

2. Define the required spray

Decide what the consumer should experience:

• fine mist
• targeted spray
• broad coverage
• higher output
• continuous spray
• controlled dosage

This requirement narrows the suitable pump and nozzle options much faster than selecting a bottle by appearance first.

3. Match the dispenser to the bottle

Check the mechanical interface:

• neck finish
• closure fit
• gasket or sealing surface
• dip tube length
• bottle height
• bottle capacity
• venting requirements where relevant

A dispenser that works on one bottle should not automatically be assumed to perform the same way on a different bottle.

4. Test the complete package before bulk production

A specification sheet helps narrow down the options. It does not replace testing with the intended formula.

At minimum, a sample evaluation should look at:

• priming
• output consistency
• spray pattern
• leakage
• actuation
• formula compatibility

Longer storage or aging evaluation may also be needed when package-formula interaction is a concern.

How spray bottle performance can be evaluated

Mechanical dispensing performance can be measured rather than judged only by appearance.

ASTM standards for mechanical pump dispensers cover areas including priming, spray-pattern evaluation, component compatibility and output per stroke.[2][3][4][5]

For a B2B sample review, the following checks are more useful than simply asking whether the pump "works."

Acceptance limits should come from the product requirements, pump specification and applicable test method rather than generic industry numbers.

What to remember

A spray bottle works because the piston repeatedly changes the pressure inside the pump chamber. Check valves control the direction of liquid flow, and the nozzle determines how the pressurized liquid leaves the package.

For a consumer, that explains why the trigger produces a spray.

For a brand, the same mechanism explains why formula viscosity, nozzle design, sealing, dip tube length and material compatibility cannot be considered separately.

The practical sequence is simple:

define the formula → define the spray experience → match the bottle and pump → test the complete package

References

[1] NASA Technical Reports Server, "Liquid Atomization."
Used to support the discussion that atomization depends on liquid properties, atomizer design, pressure and flow conditions.

[2] ASTM D4041/D4041M-05(2025), Standard Practice for Determining Spray Patterns of Mechanical Pump Dispensers.
Used to support the discussion of spray-pattern evaluation and the influence of actuator and liquid characteristics.

[3] ASTM D3890-18(2025), Standard Practice for Number of Strokes to Prime a Mechanical Pump Dispenser.
Used to support the section on priming performance.

[4] ASTM D4336-18(2025), Standard Practice for Determination of the Output Per Stroke of a Mechanical Pump Dispenser.
Used to support the discussion of output per actuation.

[5] ASTM D4333/D4333M-18(2025), Standard Practice for Compatibility of Mechanical Pump Dispenser Components.
Used to support the recommendation to evaluate dispenser-component compatibility with the intended product.
